resins free design jig made by 3D printer

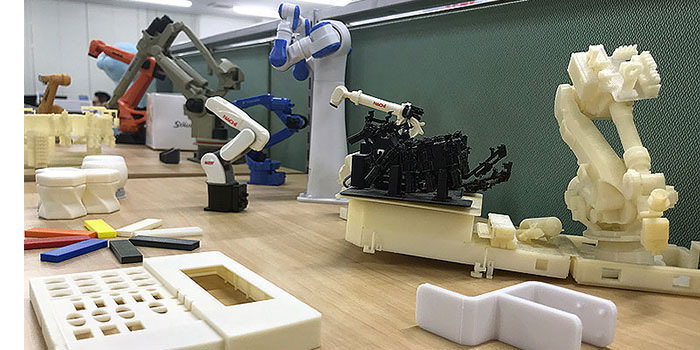

TRI ENGINEERING COMPANY LIMITED sells resins free design jig that make full use of the characteristics of 3D printers. We introduced FDM (Fused deposition modeling) 3D printer from 2011 Traditionally, jigs were produced under various restrictions such as material shape, processable shape,purchased items, etc. especially with jigs used by workers in hand were discontent such as "difficult to hold" and "heavy" before. We are introducing a 3D printer at an early stage and we are working on the production of JIGs of a new era.

Sections used

・Positioning JIG for car emblem
・Parts positioning JIG for car door catch
・Parts positioning JIG for car door hinge
・Backup positioning JIG for stud welding
・Punch positioning jig for special equipment
・Arc welding confirmation gauge for bead position.
・Spot position confirmation gauge for Spot welding

Characteristics

・For FDM modeling with weather resistance, it can be used as a jig.It corresponds to various materials
・Can be freely manufactured with the optimum shape necessary for function"Worker easy to hold""visibility good""Design the necessary strength to the required portion"
・W 914 mm x D 610 mm x H 914 mm can be integrally processed to size (Bigger size available with linking structure)
・10 colors
"Ivory" "Black" "Dark Gray" "light Gray" "Red" "Blue" "Orange" "Olive Green" "White" etc.
・"ULTEM", "PPSF (polyphenylsulfone)" and other resin materials with even higher strength andheat resistance are available with outsourced support

Parts positioning JIG for car door hinge

Positioning JIG for car emblem

３D-PRINTER

STRATASYS　3D PRODUCTION SYSTEM Fortus 450mc

Modeling work size	406（W）×355（D）×406（H）
Modeling material	ASA、ABS-M30、ABS-M30i、ABS-ESD7、PC、PC-ISO、PS-ABS、NYLON12
Lamination pitch	0.127mm/0.178mm/0.254mm/0.330mm

STRATASYS　3D PRODUCTION SYSTEM Fortus 900mc

Modeling work size	914（W）×610（D）×914（H）
Modeling material	ASA、ABS-M30、ABS-M30i、ABS-ESD7、ABSi、NYLON12
Lamination pitch	0.178 mm/0.254 mm/0.330 mm/0.508 mm

STRATASYS社　3D PRODUCTION SYSYTEM FORTUS 250mc

Materials

ASA Plus

Features	Weather resistance, beautiful appearance
Color	10 colors Ivory / white / black / dark gray / red / blue / Light gray / orange / yellow / green
Tensile strength	4,780psi（33MPa）
Bending strength	8,700psipsi（60MPa）
Load deflection temperature [66 psi]	91℃

PC(Polycarbonate)

Features	High tensile strength
Color	White
Tensile strength	9,800psi（68MPa）
Bending strength	15,100psi（104MPa）
Load deflection temperature [66 psi]	138℃

PPSF/PPSU (Outsourced support)

Features	Heat resistance, chemical resistance
Color	Brown
Tensile strength	8,000psi（55MPa）
Bending strength	15,900psi（110MPa）
Load deflection temperature [66 psi]	189℃
